Adventures in mlvg (Part 1)

Introduction

mlvg is a cross-platform audio app/plugin GUI framework created by Randy Jones of Madrona Labs. I’ve decided to document my somewhat bumpy experience (most of it my own fault) of getting the demo application up and running on my system.

NOTE: This is not a tutorial. By the time you are reading this, it will be out of date, and mlvg will most likely be refactored and renamed. In fact, I’m not quite sure what the purpose of this is.

Some stuff happened and I wanted to write about it. Enjoy!

mlvg README Instructions

to build an app:
----------------

First, build and install madronalib as a static library using the instructions in the madronalib project.

If you haven't already, update the submodules to mlvg:
- git submodule update --init --recursive

Now install the SDL2 framework. You can get a binary release from libsdl.org. On MacOS this will go into /Library/Frameworks. On Windows into the System directories.

Now use cmake to generate a project for a test application as follows:
- mkdir build
- cd build
- for Mac OS: `cmake -GXcode ..`
- for Windows: `cmake -G "Visual Studio 14 2015 Win64" ..` (substitute your compiler of choice)

My Environment Details

Hardware: MacBook Pro 18,1
OS: macOS 13.6.3
Xcode: 15.2

Installation and Setup

I started by cloning the mlvg repository, and then cloned and updated the git submodules per the README. I did not notice the line from the README regarding madronalib, but luckily (?) I had previously compiled and installed the madronalib project while experimenting with the Madrona Labs’ Soundplane software. Next, I installed SDL2 via Homebrew. Finally, I generated the project build folder using CMake.

Input:

git clone https://github.com/madronalabs/mlvg && cd mlvg
cd mlvg
git submodule update --init --recursive
brew install sdl2
mkdir build && cd build
cmake -GXcode ..

Cmake Output:

-- The C compiler identification is AppleClang 15.0.0.15000100
-- The CXX compiler identification is AppleClang 15.0.0.15000100
-- Detecting C compiler ABI info
-- Detecting C compiler ABI info - done
-- Check for working C compiler: /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/clang - skipped
-- Detecting C compile features
-- Detecting C compile features - done
-- Detecting CXX compiler ABI info
-- Detecting CXX compiler ABI info - done
-- Check for working CXX compiler: /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/clang++ - skipped
-- Detecting CXX compile features
-- Detecting CXX compile features - done
madronalib headers should be in: /usr/local/include/madronalib
madronalib library should be in: /usr/local/lib/madrona$<$<CONFIG:Debug>:-debug>
mlvg destination: lib
SDL2 headers should be in: /opt/homebrew/Cellar/sdl2/2.30.0/include/opt/homebrew/Cellar/sdl2/2.30.0/include/SDL2
SDL2 libraries should be in:
-- Configuring done (6.2s)
-- Generating done (0.0s)
-- Build files have been written to: /Users/aaron/dev/music/mlvg/build

Okay, now what?

At this point I have generated an XCode project, but haven’t actually built anything. Now, a sane person may have double clicked on build/mlvg.xcodeproj and attempted to build in Xcode. I have some personal baggage with XCode from previous work experiences, and naively started trying to build on the command line with xcodebuild to avoid needing to use the GUI. Naturally, I was immediately confronted with a gaggle of errors:

Input:

cd build
xcodebuild

Output [excerpt]

[...]
In file included from /Users/aaron/dev/music/mlvg/source/widgets/MLPanel.cpp:6:
In file included from /Users/aaron/dev/music/mlvg/source/widgets/MLPanel.h:8:
/Users/aaron/dev/music/mlvg/source/common/MLWidget.h:94:9: error: cannot initialize object parameter of type 'ml::PropertyTree' with an expression of type 'ml::Widget'
        setProperty(tail(msg.address), msg.value);
        ^~~~~~~~~~~
/Users/aaron/dev/music/mlvg/source/common/MLWidget.h:123:17: error: cannot initialize object parameter of type 'const ml::PropertyTree' with an expression of type 'ml::Widget'
    return Path(getTextProperty("param")) == paramName;
                ^~~~~~~~~~~~~~~
/Users/aaron/dev/music/mlvg/source/common/MLWidget.h:136:8: error: cannot initialize object parameter of type 'const ml::PropertyTree' with an expression of type 'ml::Widget'
    if(hasProperty("param"))
       ^~~~~~~~~~~
/Users/aaron/dev/music/mlvg/source/common/MLWidget.h:140:23: error: cannot initialize object parameter of type 'const ml::PropertyTree' with an expression of type 'ml::Widget'
      Path paramName (getTextProperty("param"));                     ^~~~~~~~~~~~~~~
[...]

Okay, so what happened here? Taking a look at one of the random errors (error: cannot initialize object parameter of type 'ml::PropertyTree' with an expression of type 'ml::Widget'), it seems that an object is being constructed using incompatible input parameters. This sort of error often arises when an installed version of a dependancy does not match the version the project was coded against.

Since the source of the error is the object type ml::PropertyTree, let’s see where that is defined. First I searched for PropertyTree in the mlvg codebase:

$ grep ../source -rne PropertyTree

# Output
../source/common/MLAppView.h:104:  PropertyTree _drawingProperties;
../source/common/MLAppController.h:10:#include "MLPropertyTree.h"
../source/common/MLWidget.h:17:#include "MLPropertyTree.h"
../source/common/MLWidget.h:31:// the Widget. To store them, Widget inherits from PropertyTree.
../source/common/MLWidget.h:33:class Widget : public PropertyTree, public MessageReceiver
../source/common/MLWidget.h:37:  Widget(WithValues p) : PropertyTree(p) {}
../source/common/MLDrawContext.h:103:  PropertyTree* pProperties;

Okay, so it looks like it isn’t actually defined within mlvg, which makes sense. But I can see it appears to be defined in MLPropertyTree.h Let’s see if that is from madronalib:

find ../../madronalib -name MLPropertyTree.h

# Output
../../madronalib/source/app/MLPropertyTree.h

Jackpot! Remember when I said that I “luckily” had a previously compiled version of madronalib? It turns out using a year-out-of-date version was a bad idea; let’s go ahead and update / rebuild that.

cd ../../madronalib
git pull
mkdir build && cd build
cmake ..
make
sudo make install
# make install is not included in the madronalib README instructions, this should potentially be added

Okay, now that madronalib is updated, let’s see what new horrors are in store.

New Horrors

Input:

cd ../../mlvg/build
xcodebuild

Output:

The following build commands failed:
  Ld /Users/aaron/dev/music/mlvg/build/build/testapp.build/Debug/Objects-normal/x86_64/Binary/testapp normal x86_64 (in target 'testapp' from project 'mlvg')
(1 failure)

This error message isn’t super descriptive, but I noticed that we’re building the x86_64 target. Since I’m running on an arm64 machine, let’s do a quick sanity check.

First, we’ll check to make sure the project is targeting arm64 (If I had thought about this for more than a second, I’d probabaly just assume that it does, since Apple processors have been arm64 based for many years at this point). Let’s take a look at CMakeLists.txt

 IF(APPLE)
  SET(CMAKE_OSX_ARCHITECTURES "x86_64;arm64" CACHE STRING "Build architectures for Mac OS X" FORCE)
  SET(CMAKE_OSX_DEPLOYMENT_TARGET "10.15" CACHE STRING "Minimum OS X deployment version")
 ENDIF(APPLE)

Okay, so on cursory inspection it looks like we’re building for both Intel and Silicon architectures, most likely in a Fat/Universal binary.

Let’s look further back in the output log and see if there’s more detail:

Ld /Users/aaron/dev/music/mlvg/build/build/testapp.build/Debug/Objects-normal/x86_64/Binary/testapp normal x86_64 (in target 'testapp' from project 'mlvg')
[...]
clang: error: no such file or directory: '/usr/local/lib/libmadrona-debug.a'

It looks like since we’re building in Debug configuration for the testapp, we’re expected to use a debug configuration of madronalib. Let’s go back and rebuild in Debug livery. Note: I had to consult with the CMake documentation to refresh my memory on how to change build configurations.

cd ../../madronalib
rm -rf build && mkdir build && cd build
cmake -DCMAKE_BUILD_TYPE=Debug ..
make
sudo make install

Now after rebuilding mlvg, we see:

Ld /Users/aaron/dev/music/mlvg/build/build/testapp.build/Debug/Objects-normal/x86_64/Binary/testapp normal x86_64 (in target 'testapp' from project 'mlvg')
[...]
ld: framework 'SDL2' not found
clang: error: linker command failed with exit code 1 (use -v to see invocation)

So we’re having trouble linking with SDL2. My first thought was – well maybe I was being too fancy by installing with Homebrew – let’s install SDL2 in /Library/Frameworks/ per the README instructions. So I went to libsdl.org, downloaded the MacOS release ( SDL2-2.30.0.dmg ), and extracted SDL2.framework to /Library/Frameworks/SDL2.framework. Next, we’ll regenerate the build folder so cmake can pick up the new paths.

cd ..
rm -rf build && mkdir build && cd build
cmake -GXcode ..
xcodebuild

And the result is … success! We have built the project and test app. Let’s try running it.

Failure to Launch

Looking at our build directory in Finder, we find testapp in the Debug directory. When I try running it by double clicking in Finder, a terminal window opens up that displays the following:

/Users/aaron/dev/music/mlvg/build/Debug/testapp ; exit;
dyld[28057]: missing symbol called
zsh: abort      /Users/aaron/dev/music/mlvg/build/Debug/testapp

Saving session...
...copying shared history...
...saving history...truncating history files...
...completed.

[Process completed]

Very enlightening. I thought it possible I was missing some vital option(s) when running xcodeubild from the command line. Let’s try running it from within the Xcode GUI instead.

UPDATE: I’ve since found that I should have been invoking xcodebuild like: xcodebuild -project mlvg.xcodeproj -target [TARGET]. After correcting some other issues (outlined below), this resulted in a working application that can be launched from Finder.

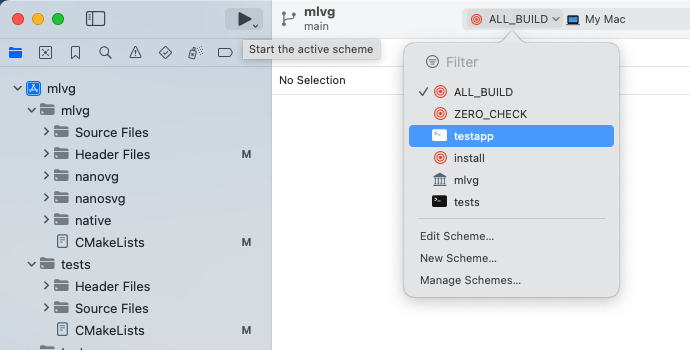

We’ll select the testapp target and run it with the “Play” button:

Screenshot 1

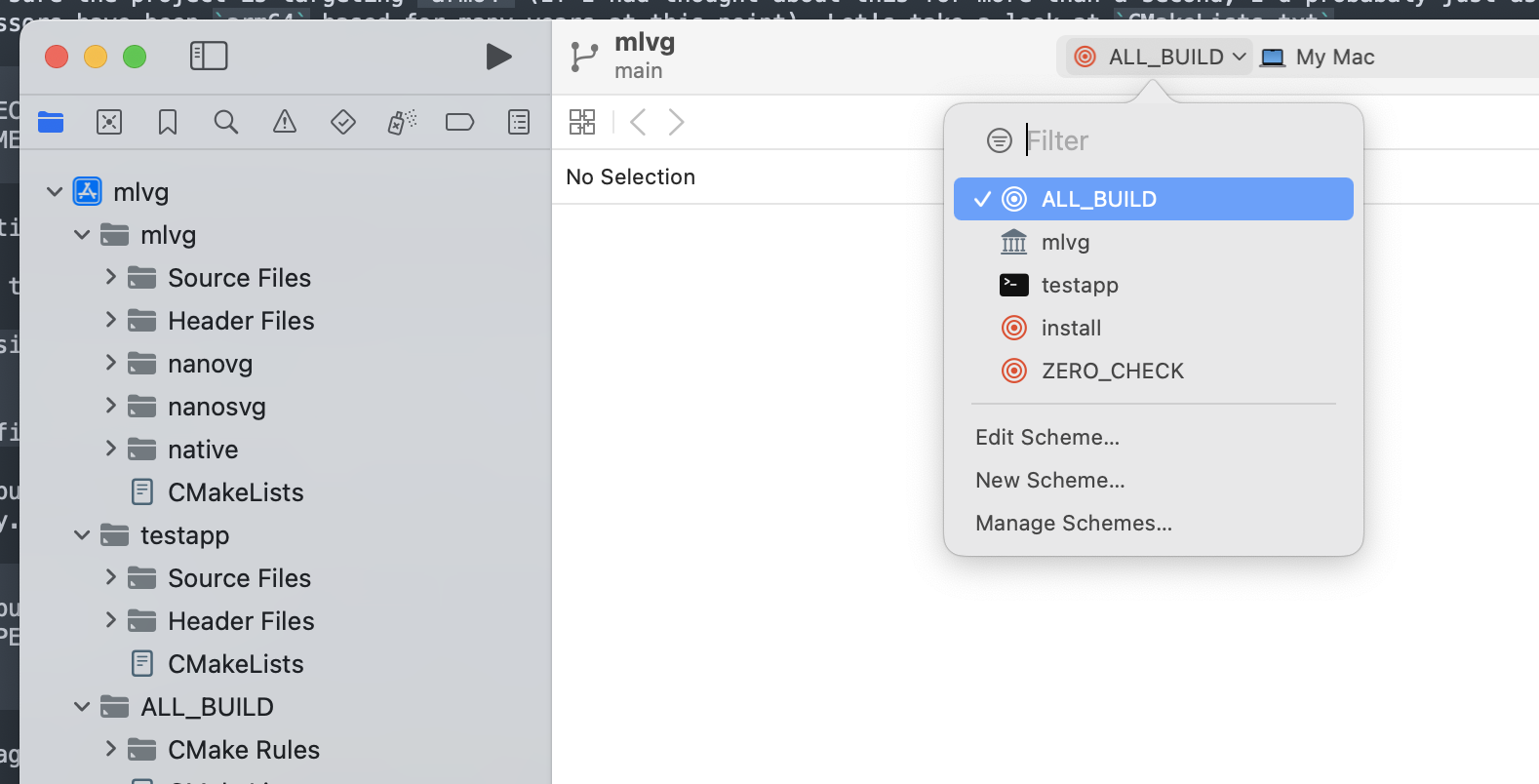

And the result is … Build failed. Let’s rebuild the whole project from within XCode. We’ll select the ALL_BUILD target and use the “Play” button again.

Screenshot 2

Success! Now we can switch back the the testapp target and try again. We have another failure, but with more useable information than from the command line:

Screenshot 3

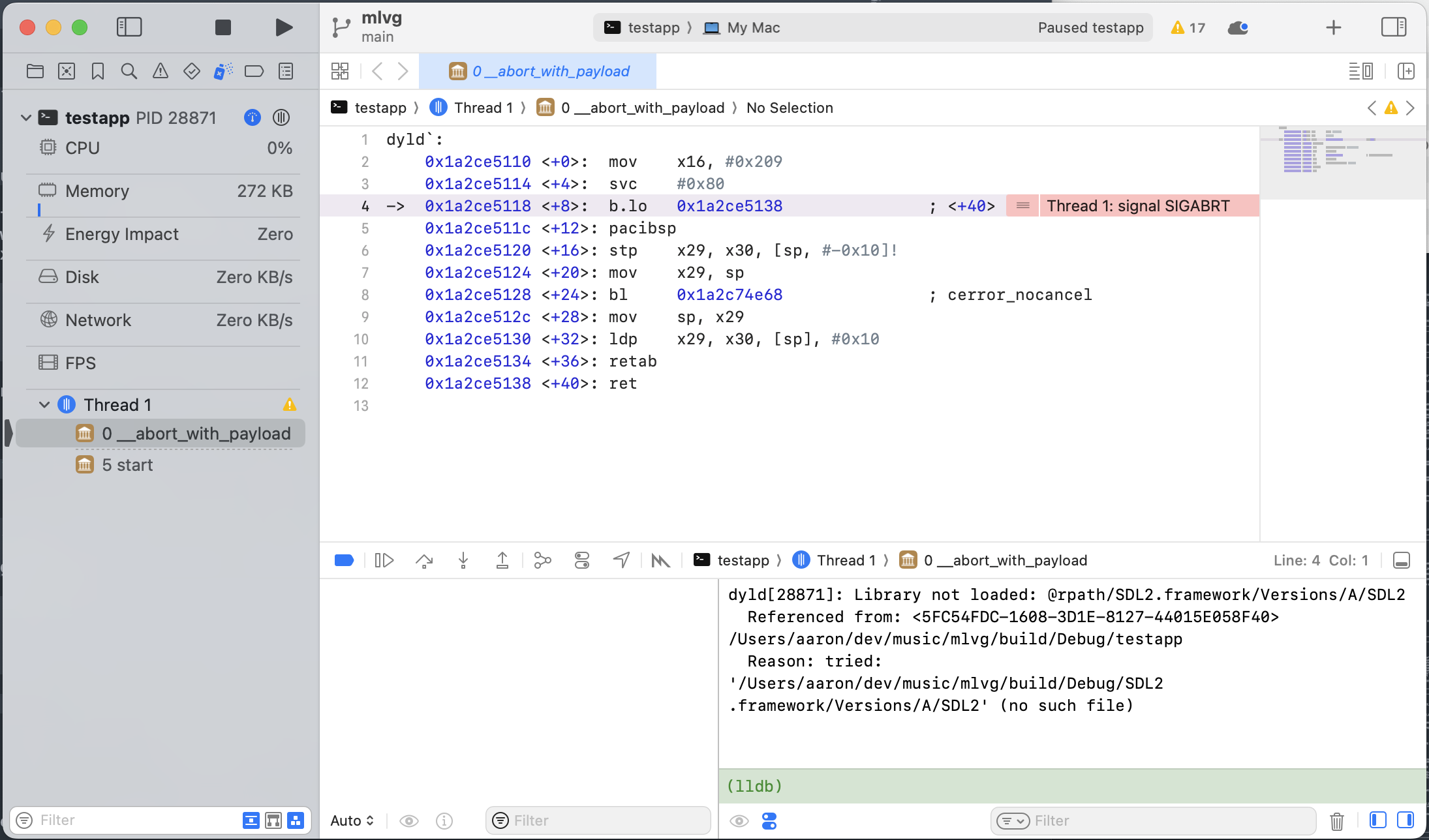

Looking at the XCode console, we can see that the SDL2 Framework is not being found. We didn’t have a problem at compilation, so this appears to be a runtime path problem.

First, I checked testapp using otool -L to see its library dependencies:

$ otool -L Debug/testapp
# Output
Debug/testapp (architecture x86_64):
	[...]
Debug/testapp (architecture arm64):
	/System/Library/Frameworks/Cocoa.framework/Versions/A/Cocoa (compatibility version 1.0.0, current version 24.0.0)
	/System/Library/Frameworks/Metal.framework/Versions/A/Metal (compatibility version 1.0.0, current version 341.35.0)
	/System/Library/Frameworks/MetalKit.framework/Versions/A/MetalKit (compatibility version 1.0.0, current version 161.0.0)
	/System/Library/Frameworks/CoreAudio.framework/Versions/A/CoreAudio (compatibility version 1.0.0, current version 1.0.0)
	/System/Library/Frameworks/CoreServices.framework/Versions/A/CoreServices (compatibility version 1.0.0, current version 1226.0.0)
	/System/Library/Frameworks/AppKit.framework/Versions/C/AppKit (compatibility version 45.0.0, current version 2487.30.104)
	@rpath/SDL2.framework/Versions/A/SDL2 (compatibility version 3001.0.0, current version 3001.0.0)
	/usr/lib/libc++.1.dylib (compatibility version 1.0.0, current version 1600.157.0)
	/usr/lib/libSystem.B.dylib (compatibility version 1.0.0, current version 1336.61.1)
	/System/Library/Frameworks/CoreFoundation.framework/Versions/A/CoreFoundation (compatibility version 150.0.0, current version 2202.0.0)
	/System/Library/Frameworks/CoreGraphics.framework/Versions/A/CoreGraphics (compatibility version 64.0.0, current version 1774.2.3)
	/System/Library/Frameworks/Foundation.framework/Versions/C/Foundation (compatibility version 300.0.0, current version 2202.0.0)
	/usr/lib/libobjc.A.dylib (compatibility version 1.0.0, current version 228.0.0)

The entry @rpath/SDL2.framework/Versions/A/SDL2 (compatibility version 3001.0.0, current version 3001.0.0) indicates that this framework is expected to be found using a runtime path (rpath), rather than a fixed location on disk. There are typically some default paths that are searched at runtime, as well as any search paths that are embedded within the binary itself, which are set at build time.

Let’s check the binary with otool -l (note the lowercase) to see if there are any rpaths baked in:

otool -l Debug/testapp

This command yields a lot of output, but what we are looking for is an entry labeled LC_RPATH. I don’t see anything in the output, but let’s double check:

otool -l Debug/testapp | grep RPATH
# Output
# nada

Since there is no configured LC_RPATH entry, we have to rely on the default runtime search paths. One would assume that /Library/Frameworks would be included in the default search paths, but that is apparently not the case. Next, we’ll try dropping it next to the binary – that’s usually a safe place to expect an rpath to resolve.

sudo cp -r /Library/Frameworks/SDL2.framework Debug

Update: I’ve since found that this rpath can be added to the XCode configuration using the CMake property XCODE_ATTRIBUTE_LD_RUNPATH_SEARCH_PATHS within the CMakeLists.txt configuration for the target:

set_target_properties(${target} PROPERTIES XCODE_ATTRIBUTE_LD_RUNPATH_SEARCH_PATHS "/Library/Frameworks")

After running again, we get:

dyld[93742]: Library not loaded: @rpath/SDL2.framework/Versions/A/SDL2
  Referenced from: <2C2D005D-459B-3B18-916C-B6D3D27F76D4> /Users/aaron/dev/music/mlvg/build/Debug/testapp
  Reason: tried: '/Users/aaron/dev/music/mlvg/build/Debug/SDL2.framework/Versions/A/SDL2' (code signature in <BB19FDFC-751D-363E-B90C-6D2E2338924A> '/Users/aaron/dev/music/mlvg/build/Debug/SDL2.framework/Versions/A/SDL2' not valid for use in process: library load disallowed by system policy)

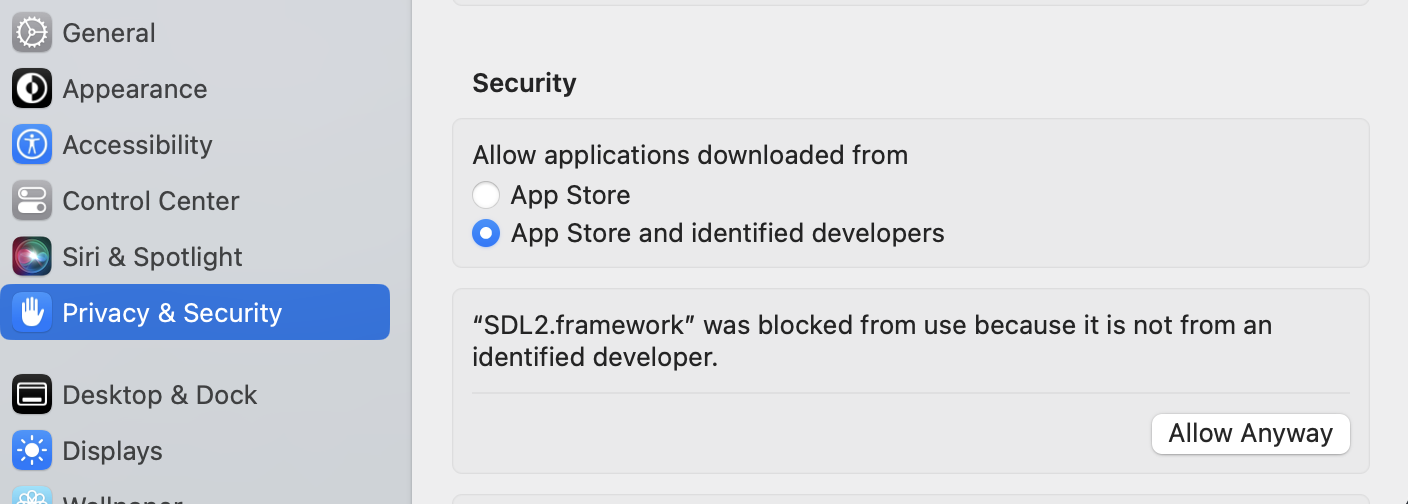

It looks like our old friend GateKeeper. We can go into System Settings -> Privacy and Security to enable this.

Screenshot 4

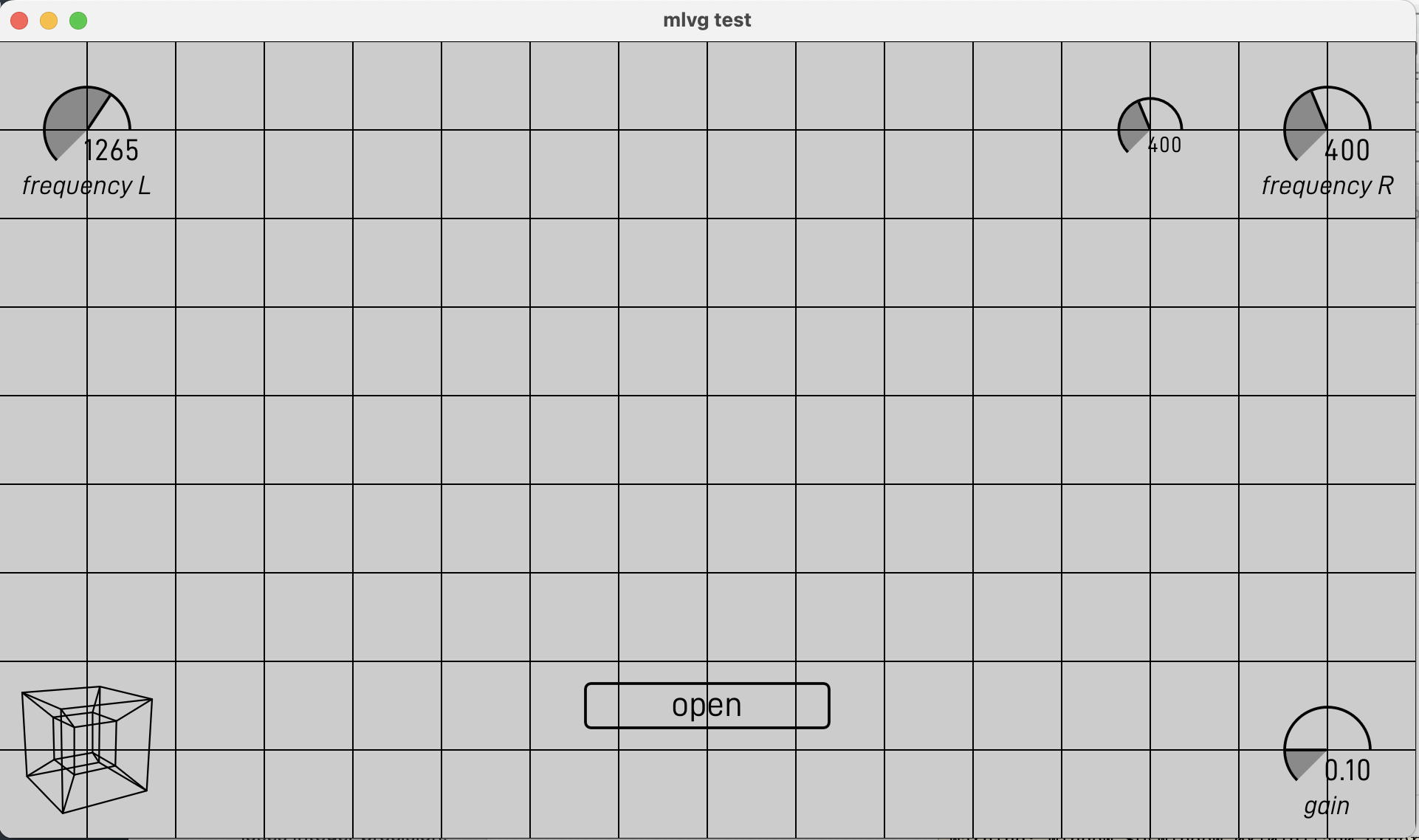

Finally, we’ll run testapp from Xcode again, and finally have a running test application:

Screenshot 5

What’s Next

Well, you can see that getting a test mlvg application up and running can be a bumpy process. I plan to propose some additions to the README, and look into the CMake configuration for some options to smooth things over.

Off the top of my head, here are some things I want to look at:

README Additions
- Document XCode / Hardware version(s) last tested
- Add note about madronalib debug configuration
- Add note about Homebrew installation of SDL2
- Add note about Gatekeeper Exception for SDL2
- Add note about using xcodebuild and XCode GUI
Project Changes
- Investigate adding madronalib as a git submodule
- Investigate statically linking SDL2
- Investigate adding RPATH for dynamic linking to SDL2 (Update included above)

I may follow this up with another entry discussing and documenting these possible changes in more detail.

On READMEs and new projects

Writing build instructions for projects is really hard, especially because readers like me don’t always follow them as precisely as they should.

An author has probably compiled and tested a project hundreds or thousands of times before it’s time to write up instructions in the README. At that point, there are probably dependencies long since forgotten, random fixes in the development environment, and a whole host of little problems that usually only crop up the very first time a user interacts with a project.

For someone with a lot of technical experience, these problems can be a minor roadblock or an annoying timewaster. But for someone just getting started in development, these sorts of things can be completely bewildering, and require hours of troubleshooting and learning that takes you well away from working on cool music stuff.

The unfortunate truth is that this kind of stuff will always happen to some degree. You get better at dealing with it as time goes on and you accrue experience and technical literacy, but it never really goes away. Hopefully this helped shed some light on the process.
